SPECIFICATION

ROCKET 3 R (MY24) Specifications
Feature Details
Engine & Transmission
Type Inline 3-cylinder, water-cooled, DOHC
Capacity 2458 cc
Bore 110.2
Stroke 85.9
Compression 10.8:1
Max Power EC 165 HP (123 kW) @ 6,000rpm
Max Torque EC 163 LB-FT @ 4,000rpm
System Ride-by-Wire, fuel injected
Exhaust Stainless 3-into-1 headers with 3 exit silencer / CAT box
Final Drive Shaft, bevel box
Clutch Wet, multi-plate hydraulically operated, torque-assist
Gearbox 6-speed
Chassis
Frame Full aluminium frame
Swingarm Single-sided, cast aluminium
Front Wheel 17 x 3.5in cast aluminium
Rear Wheel 16 x 7.5in cast aluminium
Front Tire 150/80 R17 V
Rear Tire 240/50 R16 V
Front Suspension Showa 47mm upside-down 1 1 cartridge front forks, compression and rebound adjuster, 4.7in (120mm) travel
Rear Suspension Fully adjustable Showa piggyback reservoir RSU with remote hydraulic preload adjuster, 4.2in (107mm) rear wheel travel.
Front Brakes Dual 320mm discs, Brembo M4.30 Stylema® 4-piston radial monobloc calipers, Cornering ABS
Rear Brakes Single 300mm disc, Brembo M4.32 4-piston monobloc caliper, Cornering ABS
Instrument Display and Functions TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes (Rain/Road/Sport/Rider-configurable) – Triumph TFT Connectivity System can be added with accessory fitted Bluetooth module
Dimensions & Weights
Width Handlebars 35in (889mm)
Height Without Mirror 41.9in (1065 mm
Seat Height 30.4in (773mm)
Wheelbase 66in (1677 mm)
Rake 27.9 º
Trail 5.3in (134.9mm)
Dry Weight 641.5lb (291kg)
Tank Capacity 4.8 US gal (18 l)
Fuel Consumption
Fuel Consumption 6.82 l/100km (32.43 MPG)
CO2 Figures EURO 5 Standard: 158g/km
Service
Service Interval 10,000 miles/12 months service interval, whichever comes first
ROCKET 3 GT (MY24) Specifications
Feature Details
Engine & Transmission
Type Inline 3-cylinder, water-cooled, DOHC
Capacity 2458 cc
Bore 110.2
Stroke 85.9
Compression 10.8:1
Max Power EC 165 HP (123 kW) @ 6,000rpm
Max Torque EC 163 LB-FT @ 4,000rpm
System Ride-by-Wire, fuel injected
Exhaust Stainless 3-into-1 headers with 3 exit silencer / CAT box
Final Drive Shaft, bevel box
Clutch Wet, multi-plate hydraulically operated, torque assist
Gearbox 6-speed
Chassis
Frame Full aluminium frame
Swingarm Single-sided, cast aluminium
Front Wheel 17 x 3.5in cast aluminium
Rear Wheel 16 x 7.5in cast aluminium
Front Tire 150/80 R17 V
Rear Tire 240/50 R16 V
Front Suspension Showa 47mm upside-down 1 1 cartridge front forks, compression and rebound adjuster, 4.7in (120mm) travel.
Rear Suspension Fully adjustable Showa piggyback reservoir RSU with remote hydraulic preload adjuster, 4.2in (107mm) rear wheel travel.
Front Brakes Dual 320mm discs, Brembo M4.30 Stylema® 4-piston radial monobloc calipers, Cornering ABS
Rear Brakes Single 300mm disc, Brembo M4.32 4-piston monobloc caliper, Cornering ABS
Instrument Display and Functions TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes (Rain/Road/Sport/Rider-configurable) – Triumph TFT Connectivity System can be added with accessory fitted Bluetooth module
Dimensions & Weights
Width Handlebars 34.8in (886mm)
Height Without Mirror 42in (1066 mm)
Seat Height 29.5in (750mm)
Wheelbase 66in (1677mm)
Rake 27.9 º
Trail 5.3in (134.9mm)
Dry Weight 648.2lb (294kg)
Tank Capacity 4.8 US gal (18 l)
Fuel Consumption
Fuel Consumption 6.82 l/100km (32.43 MPG)
CO2 Figures EURO 5 Standard: 158g/km
Service
Service Interval 10,000 miles/12 months service interval, whichever comes first

ROCKET 3

Triumph Rocket 3 R in Matt Silver ice

ROCKET 3 R (MY24)

Price From $27,995.00

ROCKET 3 GT (MY24)

Price From $28,795.00

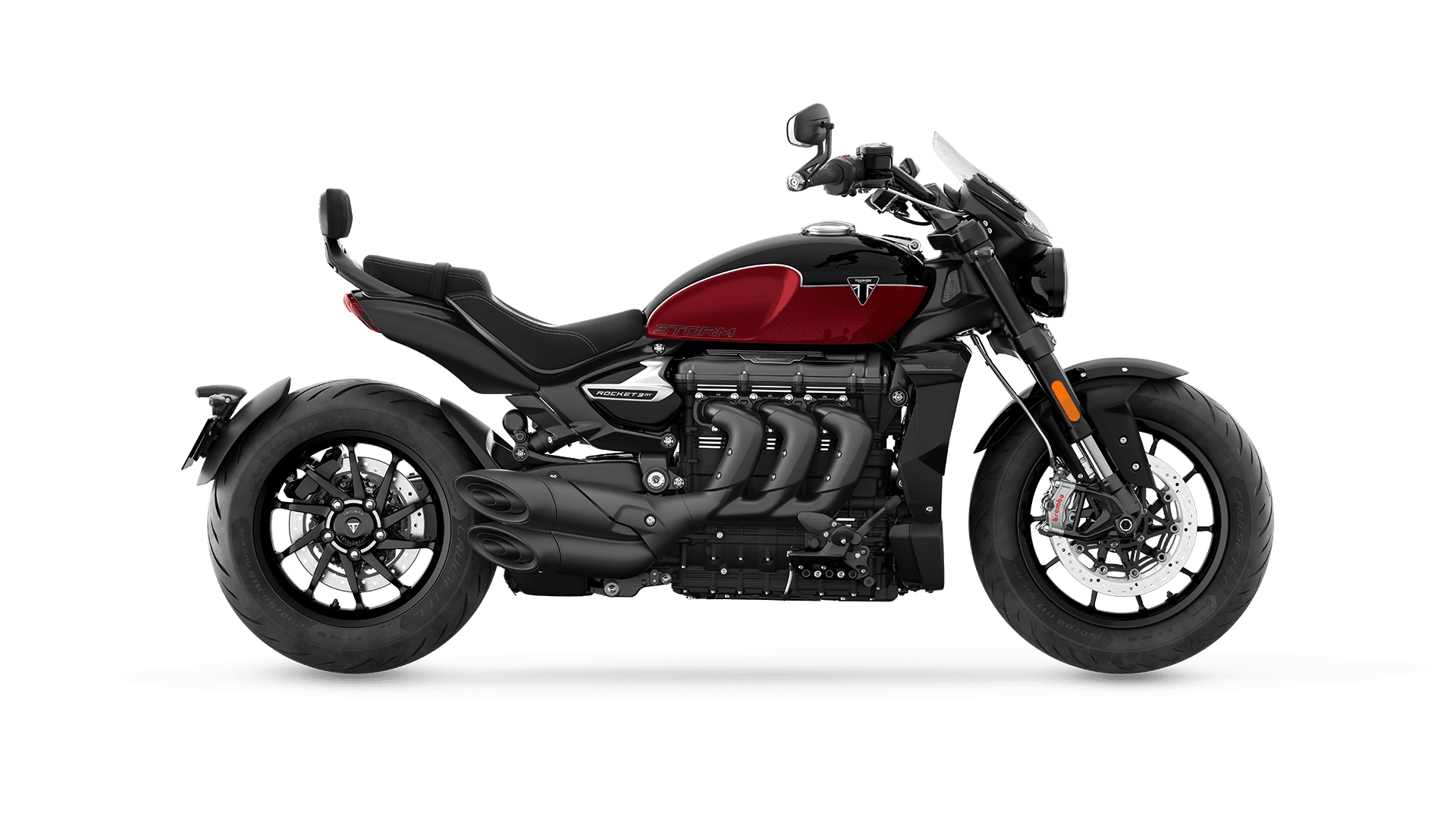

Rocket 3 GT Storm Sapphire Black Carnival Red

NEW ROCKET 3 STORM GT

Price From $29,995.00

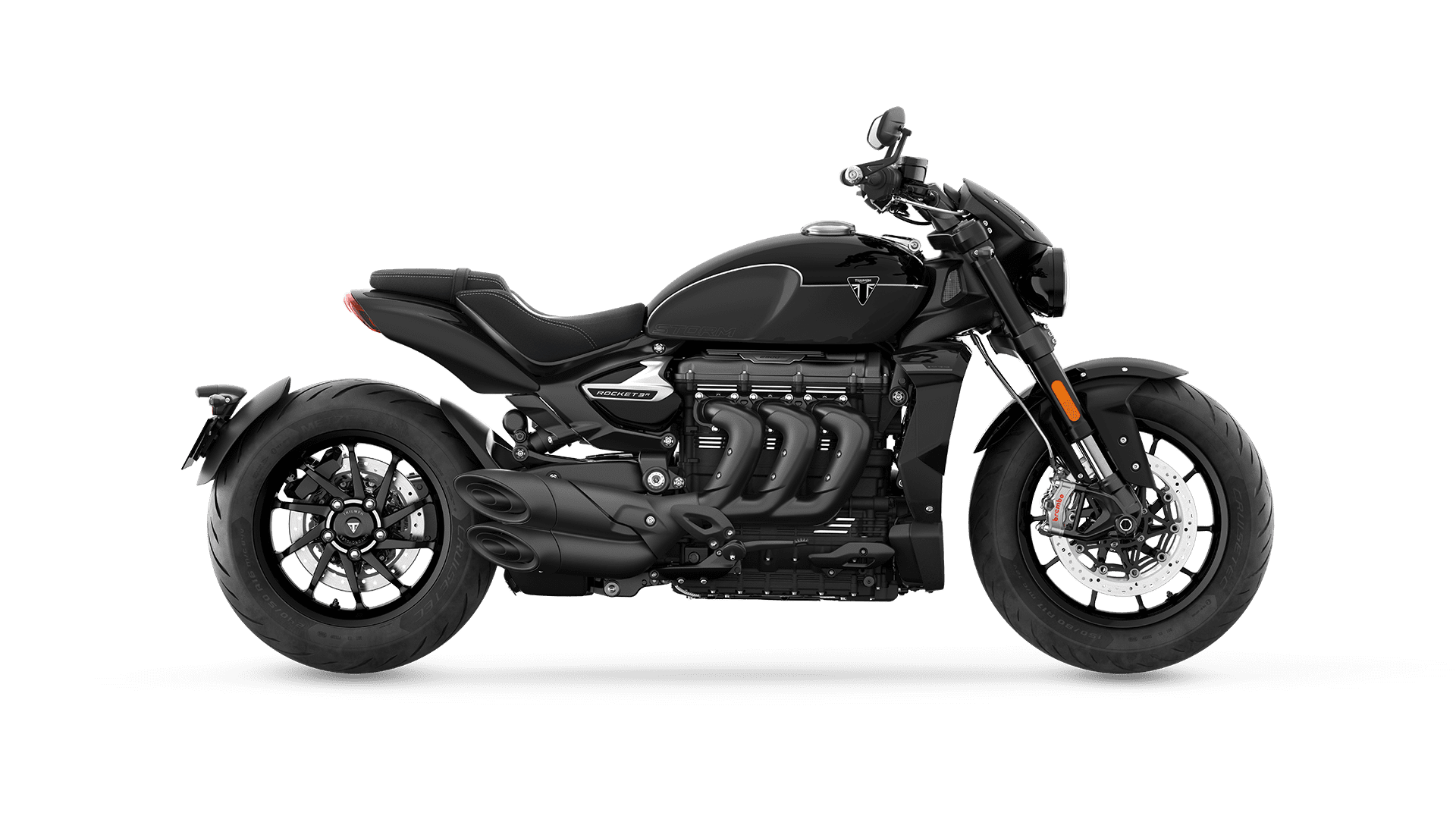

Rocket 3 R Storm Sapphire Black Granite

NEW ROCKET 3 STORM R

Price From $28,995.00
